John Deere Z530M Review
The Z530M offers a 24 hp V-twin, 8 mph speed, roll bar, ComfortGlide seat and a 4-year warranty. It costs much more than the Z300 line but is built tougher.
- Deck size
- 48 in (54 or 60 in optional)
- Horsepower
- 24 HP
- Drive
- Zero-turn, dual hydrostatic
- Fuel type
- Gasoline
Rating breakdown
Key specifications
| Power type | Gasoline |
|---|---|
| Horsepower | 24 HP |
| Engine | Kawasaki V-twin OHV, air-cooled |
| Displacement | Not published by Deere |
| Fuel type | Gasoline |
| Transmission | Tuff Torq TZT7-U hydrostatic, twin lever control |
| Drive | Zero-turn, dual hydrostatic |
| Deck size | 48 in (54 or 60 in optional) |
| Deck construction | Accel Deep, side discharge, four-point lift |
| Cutting height | 1 to 4 in (0.25 in steps) |
| Blades | Side-discharge blades; MulchControl kit optional |
| Discharge | Side discharge; mulching and bagging with optional kits |
| Top speed | 8 mph forward, 4 mph reverse |
| Turning radius | Zero |
| Front tires | 13x6.5-6 casters |
| Rear tires | 22x9.5-10 |
| Weight | 772 lb (no fuel) |
| Dimensions | 48-in. deck standard; see Deere spec sheet for overall size |
| Fuel capacity | 4.5 US gal (17 L) |
| Recommended property size | Up to about 2 acres of flat ground with obstacles |
| Seat | 20 in with armrests and ComfortGlide |
| Rollover protection | Foldable ROPS and seat belt |
| Battery | 12V |
| Towing (with optional hitch) | 250 lb; 100 lb tongue weight |
| Deck options | 54 in (+$200), 60 in (+$500) |
Pros and cons
What we like
- Roll bar and seat belt are standard
- 24 hp V-twin with 8 mph speed
- 48, 54 or 60-in. deck choices
- ComfortGlide seat with armrests
- 4-year / 300-hour warranty
What could be better
- Much higher price than the Z300 line
- Hitch and LED lights are optional
- Heavy at 772 lb
- 54 and 60-in. decks cost extra
- Not sold in California
Z530M review
Why the John Deere Z530M is a step up
The John Deere Z530M belongs to the Z500 Series, one level above the Z300 line. It has a 24 hp Kawasaki V-twin and an 8 mph top speed. A foldable roll bar and seat belt are standard. You can pick a 48, 54 or 60-inch Accel Deep deck. The warranty is 4 years or 300 hours.
Engine and drive
The engine is a 24 hp V-twin with cast-iron cylinder liners. Drive comes from Tuff Torq TZT7-U transmissions. Speed is 8 mph forward and 4 mph in reverse. Tow valves let you push the mower. The control levers have 18 adjustment positions.
Deck choices
The 48-inch deck is standard. The 54-inch deck adds $200. The 60-inch deck adds $500. Cutting height runs from 1 to 4 inches in quarter-inch steps. A foot pedal lifts the deck on a four-point system with a transport lockout. MulchControl kits and a Power Flow bagger are optional.
Seat, safety and comfort
The 20-inch seat has armrests, two springs and ComfortGlide suspension. ComfortGlide lets the seat move gently on bumps. Tires are 13×6.5-6 casters and 22×9.5-10 drive tires, which are much bigger than the Z300 tires. The fuel tank holds 4.5 gallons. That is 50 percent more than the Z300 tanks.
Limits to know about
The rear hitch and LED lights are optional. The mower weighs 772 lb, so it needs a ramp or a good trailer. It costs far more than the Z330R. Deere says it suits flat ground with obstacles, up to about two acres. Larger yards may suit a higher-capacity model.
Who should buy it
Buy the Z530M if you want rollover protection, a bigger tank and a sturdier chassis. Choose the Z330R if you want a lower price.
Buying information
Ownership
Frequently asked questions
How much horsepower does the John Deere Z530M have?
24 hp from a Kawasaki V-twin engine.
What deck sizes are offered on the Z530M?
48, 54 or 60 inches. The 48-inch deck is standard.
How fast is the Z530M?
Up to 8 mph forward and 4 mph in reverse.
Does the Z530M have a roll bar?
Yes. It has a foldable roll bar and a retractable seat belt.
How is the Z530M different from the Z330R?
The Z530M has more speed, a 4.5 gal tank, a roll bar and a 4-year warranty. The Z330R costs much less.
Owner reviews
No owner reviews yet. Own one? Be the first to share what it is like to live with.
Related models
John Deere Z330R Review
The Z330R is the Z330M with armrests, LED lights, a floor mat and covered storage included. It is the best-equipped Z300 gas…
23 HP · 48 in (54 in optional) · $4,199
John Deere Z330M Review
The Z330M has a 23 hp V-twin, 48-in. deck, 20-in. high-back seat and wide tires. It is the balanced pick for 2-acre…
23 HP · 48 in (54 in optional) · $3,999
John Deere Z325E Review
The Z325E offers 24 hp and a 48-in. forged deck (54-in. optional) for the lowest price among wide-deck Z300 models.
24 HP · 48 in (54 in optional) · $3,899
John Deere Z315E Review
The Z315E is the cheapest Z300 zero-turn, with a 20 hp V-twin and 42-in. deck. It suits yards up to 2 acres…
20 HP · 42 in · $3,499
Compare with similar models

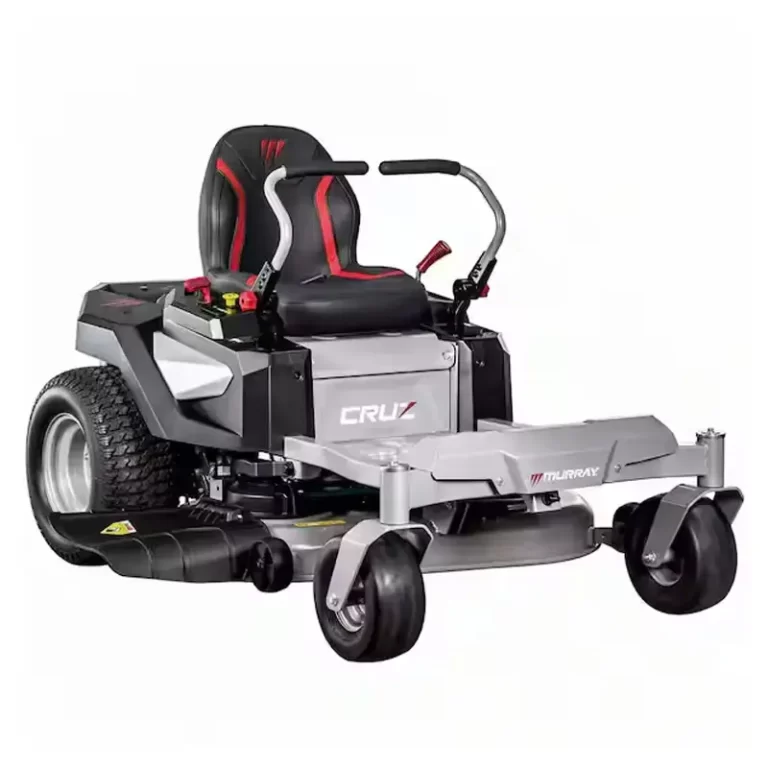

Murray Cruz 42 Review
The Cruz 42 is an inexpensive zero-turn that brings dual hydrostatic drive and a 3-year warranty to a small deck. Missing weight…
42 in. (spec table also lists 44) · $2,899

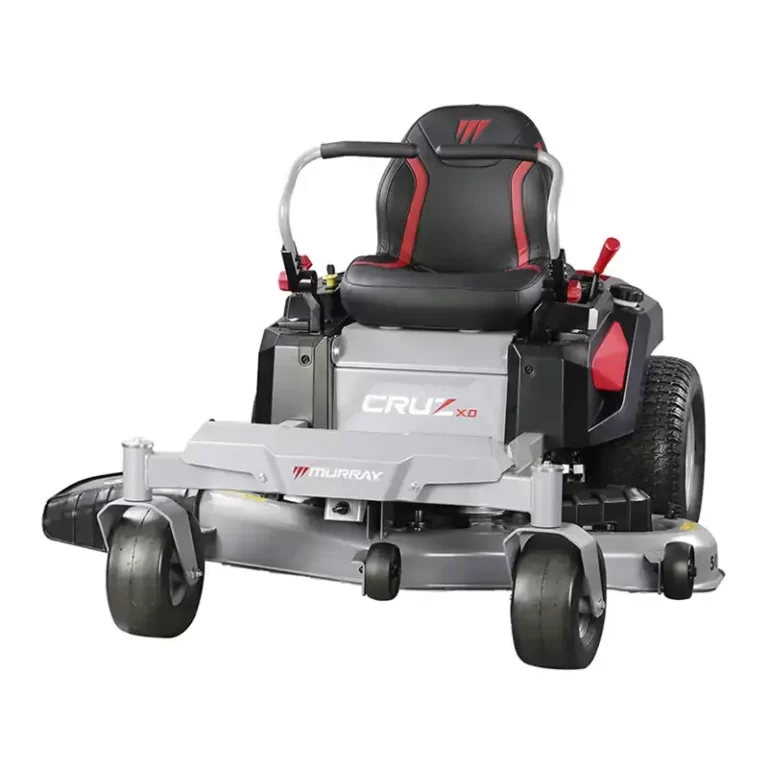

Murray Cruz XD 50 Review
The Cruz XD 50 offers a wide deck, V-twin power and a 3-year warranty at a modest price for its size. Seven…
50 in. (spec table lists a 52-in. deck) · $3,349

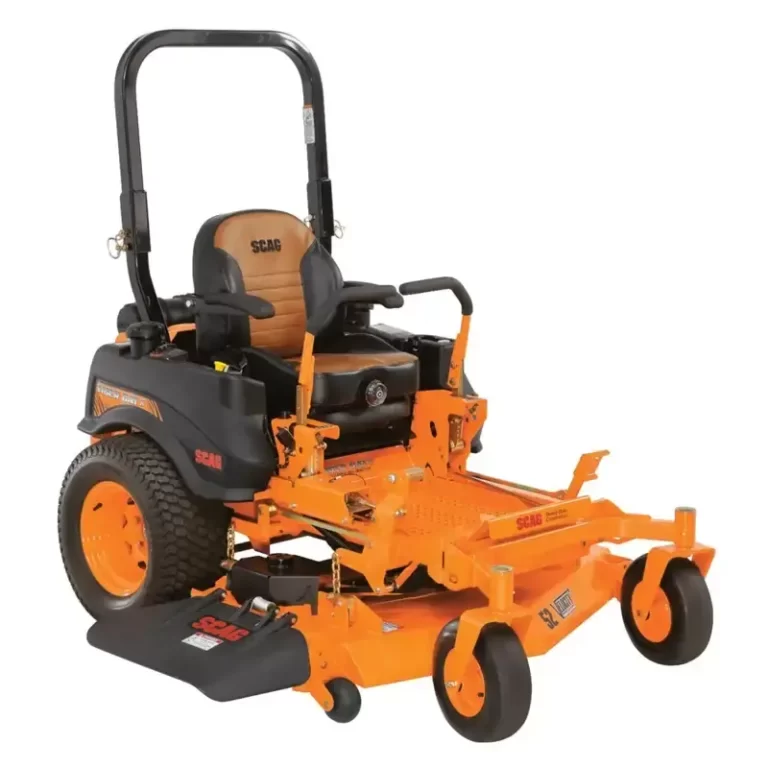

Scag Tiger Cat II Review
The Tiger Cat II is a fast, heavily built compact commercial mower with a deck and clutch far beyond residential machines. Its…
48, 52 and 61 in. · $11,729

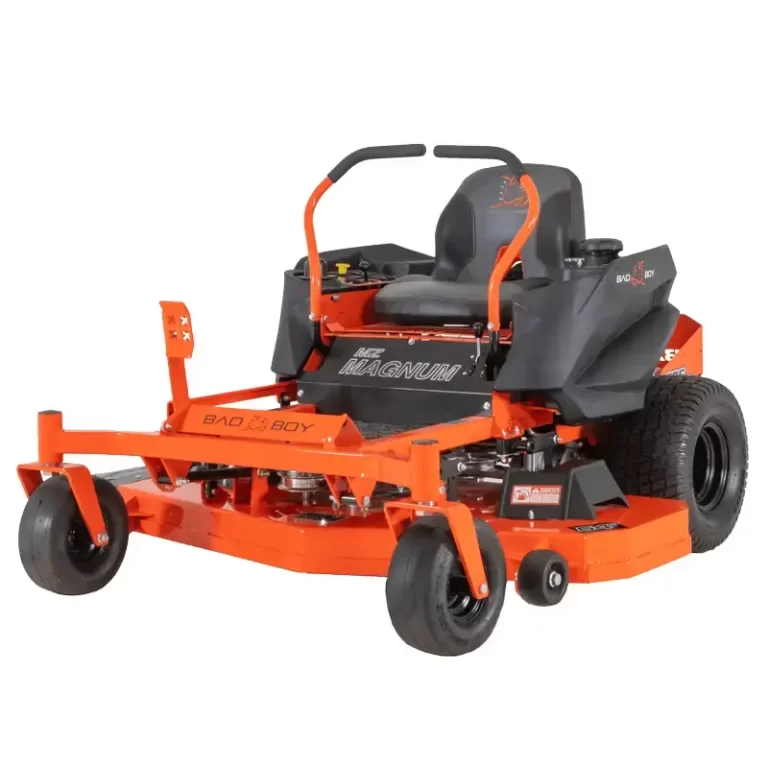

Bad Boy MZ Magnum Review
