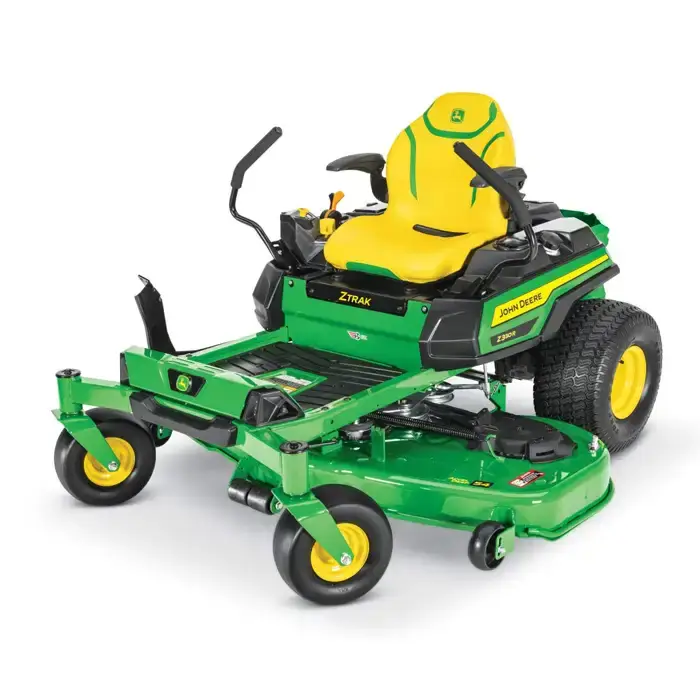

John Deere Z330R Review
The Z330R is the Z330M with armrests, LED lights, a floor mat and covered storage included. It is the best-equipped Z300 gas model.
- Deck size
- 48 in (54 in optional)
- Horsepower
- 23 HP
- Drive
- Zero-turn, dual hydrostatic
- Fuel type
- Gasoline
Rating breakdown
Key specifications
| Power type | Gasoline |
|---|---|
| Horsepower | 23 HP |
| Engine | Kawasaki FR691V V-twin OHV, air-cooled |
| Displacement | Not published by Deere |
| Fuel type | Gasoline |
| Transmission | Hydro-Gear EZT hydrostatic, twin lever control |
| Drive | Zero-turn, dual hydrostatic |
| Deck size | 48 in (54 in optional) |
| Deck construction | Accel Deep, forged 10-gauge steel, side discharge |
| Cutting height | 1.25 to 4.5 in |
| Blades | Side-discharge blades; MulchControl kit optional |
| Discharge | Side discharge; mulching and bagging with optional kits |
| Top speed | 7 mph forward, 3.5 mph reverse |
| Turning radius | Zero |
| Front tires | 11x6.0-5 casters |
| Rear tires | 20x10.0-8 |
| Weight | 611 lb (no fuel) |
| Dimensions | 48-in. deck; weight 611 lb |
| Fuel capacity | 3.0 US gal (11.3 L) |
| Recommended property size | Up to about 2 acres |
| Battery | 12V, 300 CCA |
| Deck lift | Foot pedal |
| Fuel tank | Translucent |
| Seat | 20 in high back with armrests |
| Lights | LED, standard |
| Floor mat | Standard |
| Rear hitch | Standard |
Pros and cons
What we like
- Armrests, LED lights and floor mat included
- 23 hp Kawasaki V-twin
- 48-in. forged deck
- Wide 20x10-8 drive tires
- Covered storage compartment
What could be better
- Costs $200 more than the Z330M
- No rollover protection
- 3 gal fuel tank
- Heaviest Z300 gas model at 611 lb
- 54-in. deck costs extra
Z330R review
Our take on the John Deere Z330R
The John Deere Z330R is the fully equipped version of the Z330M. It has the same 23 hp V-twin, the same 48-inch forged deck and the same wide tires. The R adds armrests, LED lights, a floor mat and covered storage. Those items would cost extra on the M.
What the R adds
Armrests make long mowing sessions easier on your arms. LED lights let you mow at dusk. A rubber floor mat cuts vibration. Covered storage keeps small items dry. The seat is a 20-inch high-back design with spring suspension and armrests.
Deere sells the armrest, light and mat kits for the Z330M for about $274 combined. The Z330R costs $200 more than the Z330M, so the gap is small.
Engine and drive
The engine is a 23 hp FR691V V-twin. Drive is a Hydro-Gear EZT transmission with twin levers. Speed is 7 mph forward and 3.5 mph in reverse. Tires are 11×6.0-5 up front and 20×10.0-8 in back. A rear hitch is standard.
Deck
The 48-inch deck is forged from 10-gauge steel. A 54-inch deck costs $100 more. Cutting height runs from 1.25 to 4.5 inches. The MulchControl kit and Power Flow bagger are optional.
Limits to know about
The Z330R weighs 611 lb. The tank holds 3 gallons. It does not have a roll bar. If you want that, look at the Z530M. It is the most expensive Z300 gas model we cover here.
Who should buy it
Buy the Z330R if you want a comfortable mower with lights and armrests ready to go. Choose the Z330M to save $200 and add kits only if you need them.
Buying information
Ownership
Frequently asked questions
How much horsepower does the John Deere Z330R have?
23 hp from a Kawasaki FR691V V-twin.
What does the Z330R have that the Z330M does not?
Armrests, LED lights, a floor mat and covered storage.
How much does the Z330R weigh?
611 lb without fuel.
What deck does the Z330R have?
A 48-inch forged deck. A 54-inch deck costs $100 more.
Does the Z330R have a roll bar?
No. Deere does not list rollover protection on this model.
