John Deere S170 Review
The S170 combines a 24 hp ELS V-twin, 48-in. deck, K46 transmission and Easy Change oil. It is built for larger yards and heavier use.
- Deck size
- 48 in
- Horsepower
- 24 HP
- Drive
- 2WD, hydrostatic
- Fuel type
- Gasoline
Rating breakdown
Key specifications
| Power type | Gasoline |
|---|---|
| Horsepower | 24 HP |
| Engine | V-twin OHV, air-cooled, ELS (Deere M44) |
| Displacement | 44.2 cu in (724 cc), 2 cylinders |
| Fuel type | Gasoline |
| Transmission | Tuff Torq K46 heavy-duty hydrostatic, foot pedals |
| Drive | 2WD, hydrostatic |
| Deck size | 48 in |
| Deck construction | Edge, 12-gauge steel (0.105 in), three-spindle, side discharge |
| Cutting height | 1 to 4 in, 13 positions (0.25 in steps) |
| Blades | 3-in-1 blades |
| Discharge | Side discharge; mulching and bagging with optional kits |
| Top speed | 5.5 mph forward, 3.2 mph reverse |
| Turning radius | 18 in |
| Front tires | 16x6.5-8 |
| Rear tires | 22x9.5-12 |
| Weight | 503 lb (no fuel) |
| Dimensions | 75.3 in L x 60.8 in W x 45.7 in H; wheelbase 48.9 in |
| Fuel capacity | 2.4 US gal (9.1 L) |
| Recommended property size | Up to about 2 acres or more |
| Towing capacity | 500 lb |
| Battery | 12V, 300 CCA, 14 A charging |
| Headlights | LED |
| Uncut circle radius | 20 in |
| Seat back height | 15 in, adjustable lumbar |
Pros and cons
What we like
- 24 hp ELS V-twin engine
- Heavy-duty K46 transmission
- Tall 22x9.5-12 rear tires
- Easy Change oil and cruise control
- Adjustable lumbar seat
What could be better
- No differential lock
- No receiver hitch
- About 60.8 in. wide with the deck
- Only 2.4 gal fuel tank
- No backup lights or 12V outlet
S170 review
John Deere S170 at a glance

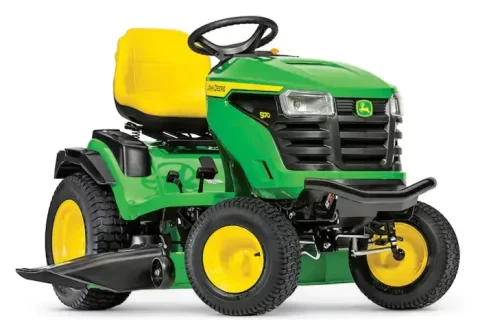

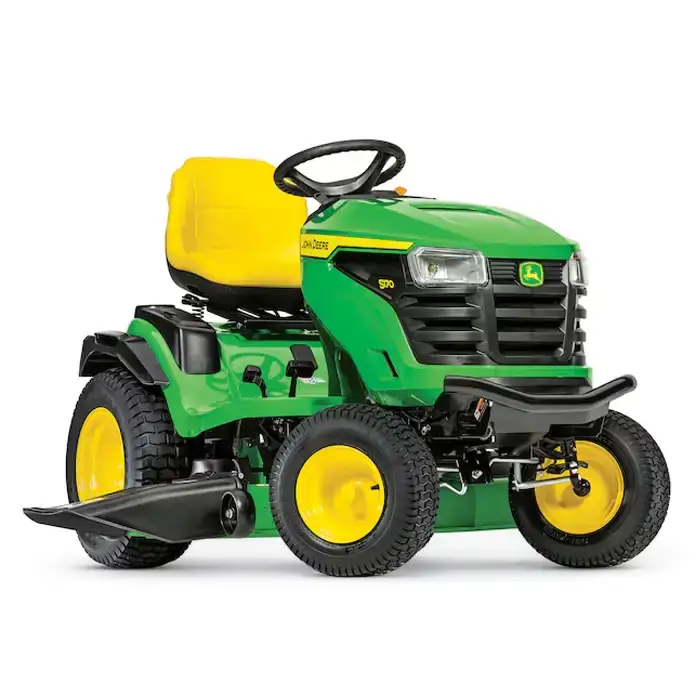

The John Deere S170 is the step-up 100 Series tractor for bigger yards. It has a 24 hp V-twin Extended Life Series (ELS) engine and a 48-inch Edge deck. It also gets a heavier Tuff Torq K46 transmission and larger tires. Easy Change oil, cruise control and a lumbar-adjustable seat are included.
Engine and transmission
The engine is a 44.2 cubic inch (724 cc) V-twin with cast-iron liners and overhead valves. The ELS version adds features aimed at longer engine life. Charging output is 14 amps.
The K46 heavy-duty hydrostatic transaxle is the big change from the smaller models. It has cooling fins and a fan. Speed is 0 to 5.5 mph forward and 0 to 3.2 mph in reverse. Cruise control is standard.
Tires, seat and ride
The tractor rides on 16×6.5-8 front tires and tall 22×9.5-12 rear tires. They give better grip and a smoother ride than the 20-inch tires on the smaller models. The tractor weighs 503 lb without fuel.
The seat has a 15-inch back with adjustable lumbar support. It slides 5.5 inches and sits on two coil springs. The steering wheel is 12 inches across. A front bumper is standard.
The 48-inch deck
The deck is built from 12-gauge steel. It has three spindles, four wheels and an easy-level design. Cutting height runs from 1 to 4 inches. Mulching and bagging need optional kits.
The Reverse Implement Option lets you back up with the deck running. That helps with attachments. Towing is rated at 500 lb.
Limits to know about
There is no receiver hitch and no differential lock. There is no 12-volt outlet or backup light. The tank holds 2.4 gallons. The tractor is about 60.8 inches wide with the deck.
Who should buy it
Buy the S170 if you mow about two acres or more and want a stronger drivetrain. Choose the S140 to save money. Choose the S180 if you want a 54-inch deck.
Buying information
Ownership
Frequently asked questions
How much horsepower does the John Deere S170 have?
24 hp from a V-twin Extended Life Series (ELS) engine.
What size deck does the S170 have?
A 48-inch Edge deck made from 12-gauge steel.
Does the S170 have cruise control?
Yes. Cruise control is standard.
How much does the S170 weigh?
503 lb without fuel.
How is the S170 different from the S180?
The S180 has a 54-inch deck and weighs 526 lb. The S170 has a 48-inch deck.
Owner reviews
No owner reviews yet. Own one? Be the first to share what it is like to live with.
Related models
John Deere S140 Review
The S140 gives you a 48-in. deck and a 22 hp V-twin at the same price as the S130. You trade away…
22 HP · 48 in · $3,099
John Deere S180 Review
The S180 is the widest and most powerful 100 Series tractor, with a 54-in. deck and 24 hp ELS V-twin. It suits…
24 HP · 54 in · $3,799

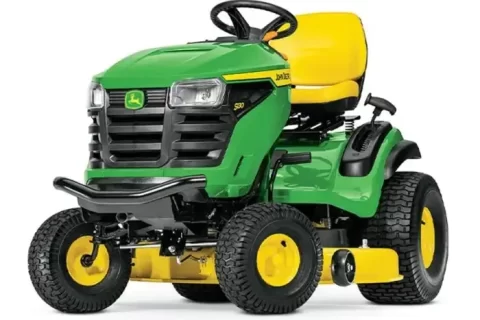

John Deere S130 Review
